DESCRIPTION

Basic Info.

Model NO.	6-S
Weight	<1T
Material	Carbon Steel
Material Feature	Heat Resistant
Certification	ISO9001:2008, CE
Energy Saving	Energy Saving
Warranty	2 Years
Color	Green
Customized	Customized
Condition	New
Colour	as Request
Price	Negotiate
Guarantee	1 Year
Brand	Hengxing
Maintenance	We Dispatch Engineer
After Sale Service	Supply for Whole Using Time
Transport Package	Export Standard
Specification	International standard
Trademark	Hengxing
Origin	Zhengzhou, China
HS Code	84742090
Production Capacity	100 Sets Per Month

Product Description

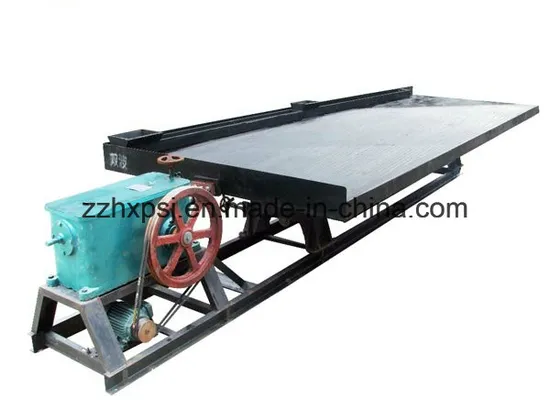

Chrome Ore Gravity Process Shaking Table :

Processing ability: 10-60 t/h Feeding size: 0.15-2 mm Feeding thickness: 15-30% Applied material: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, titanium, manganese, iron ore, coal, etc

The Handling Materials and Function of Shaking Table: Shaking table is a gravity dressing machine used for separating fine particles such as tin, tungsten, gold and silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, ferrotitanium and coal. The Working Process of Shaking Table: Concentrator table beneficiation refers to that on a slant table, relying on the combined effect of the symmetrical and reciprocating motion of the mechanical slabstone and the lamella slant water flow, the ore particles become loose, layered and zoned on the table, thus separating the minerals based on density.Shaking Table Main Technical Parameters:

Name		Grit concentrator table	Fine sand concentrator table	Sludge concentrator table
Bed surface Dimensions	Length (mm)	4450	4450	4450
	Driving part Width (mm)	1855	1855	1855
	Concentrate part Width (mm)	1546	1546	1546
Max.feeding size(mm)		2	0.5	0.15
Feeding amount (t/d)		30-60	10-20	15-25
Feeding thickness (%)		25-30	20-25	15-25
Stroke (mm)		16-22	11-16	8-16
Frequency (f)		45-48	48-53	50-57
Bed surface Water quantity (t/d)		80-150	30-60	10-17
Bed surface Horizontal obliquity(°)		2.5-4.5	1.5-3.5	1-2
Bed surface Portrait obliquity(%)		1.4	0.92	----
Table board corner(°)		32-42	40	42
Concentrating area()		7.6	7.6	7.6
Bed surface Length ratio		2.6	2.6	2.6
Shape of side-bed surface		Rectangle	Zigzag	Triangle
Motor power(kw)		1.1	1.1	1.1
Transmission device		Eccentricity

Contact: Ms Sara Pang Mobile phone :: 0086137 8347 1727
